This is a list of OEM parts and near-match replacements for the Metacycle.
Most of the links originated from OEM Parts List and nonOEM Parts List. Links were updated where broken, plus additional part links were found through various forums and web searches.
There are no affiliate links on this page.

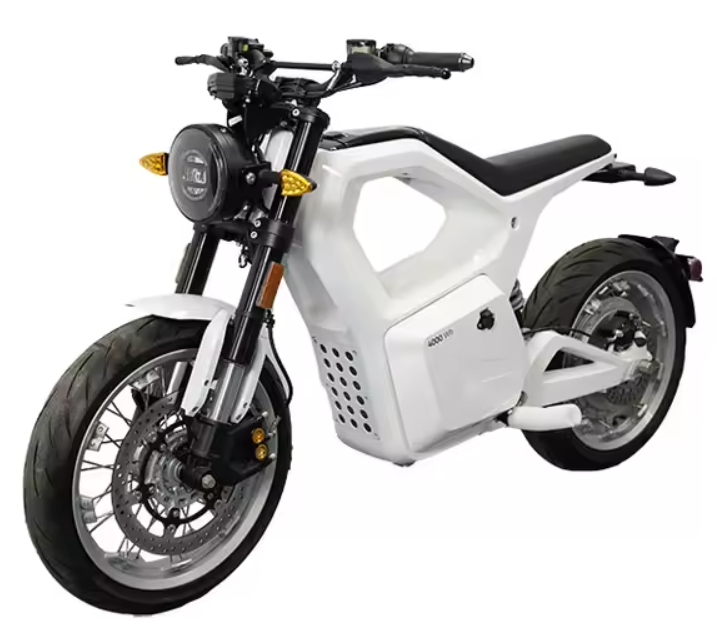

Entire Metacycle
- OEM: AliExpress - The manufacturer sells the entire bike on AliExpress. Search for "AliExpress SiAECOSYS Motorcycle 72v" or look at E smart way.

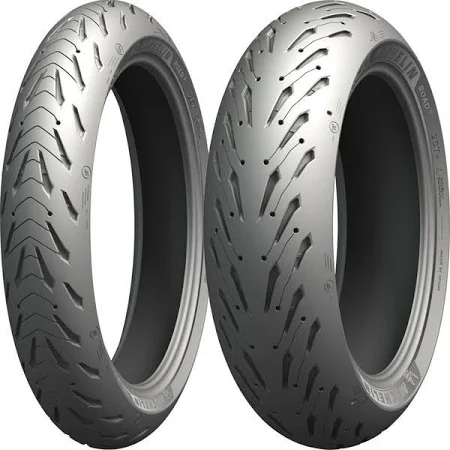

Tires
- Some come with Michelin Pilot Road 5, some with CST CM-NK01, some allegedly with Kenda.
- Front 32 PSI (221 kPa), 110/70 R17 tires. Rear 30 PSI (207 kPa), 150/60 R17 tires.
- Tire changing videos: short version and long version.
- If your spokes go to tabs on the wheel rim, you have tubeless tires.

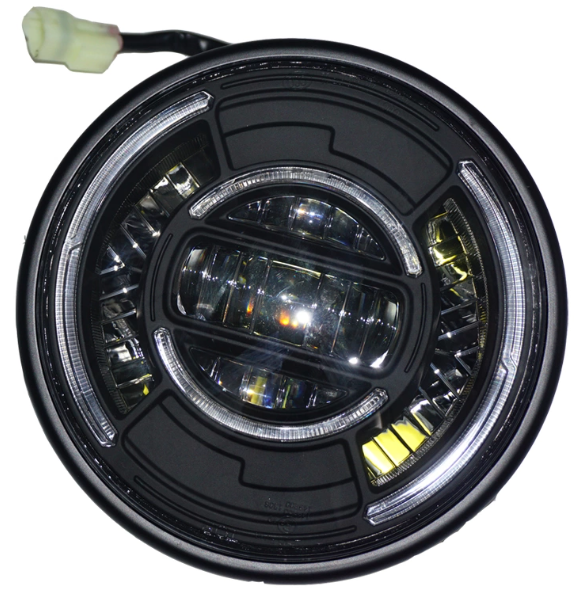

Headlight
- OEM: SiAECOSYS, AliExpress

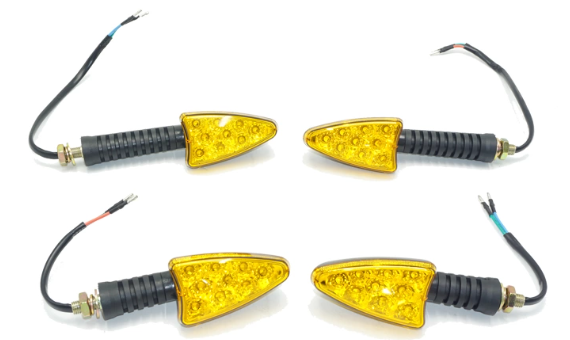

LED Turn Signals
- OEM: SiAECOSYS

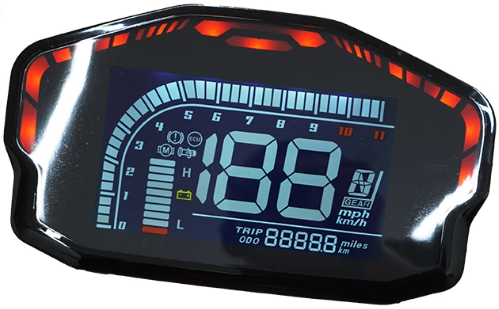

Display Unit / Speedometer
- OEM: SiAECOSYS, AliExpress - 061 DKD; see more information about the display unit.

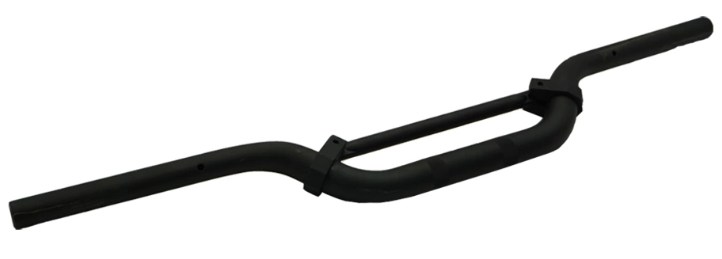

Handlebar
- OEM: SiAECOSYS
- The cross-bar is aesthetic. It can be used as a mount point or removed.

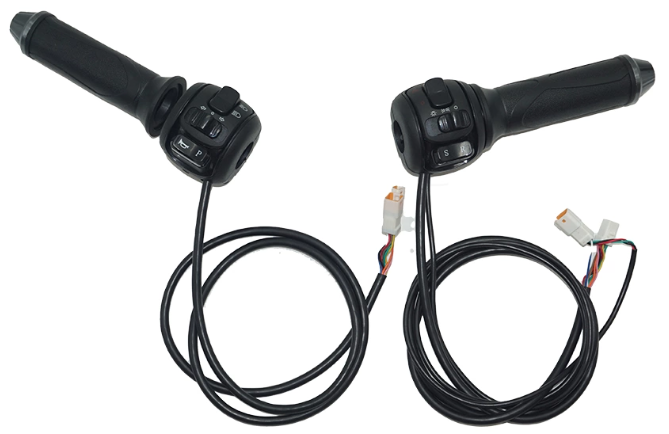

Grips, Throttles, Combination Switches
- OEM: SiAECOSYS, AliExpress
- Aftermarket: SiAECOSYS also makes other models that may work.

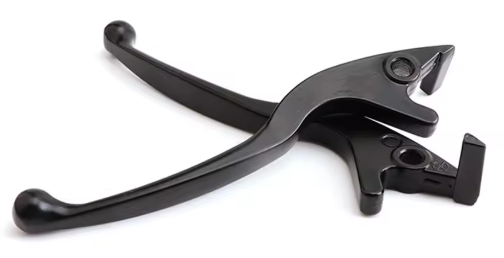

Brake Handles
- Aftermarket: AliExpress - fits, but is a slightly different shape.
- Aftermarket: Amazon - adjustable brake levers that need no modification and are a bit shorter.
- Aftermarket: Amazon - adjustable brake levers that nearly fit and need minor modification with a rotary tool or drill.
- Aftermarket: AliExpress - select types 6+7, 14+15, or 17+18 upon checkout.

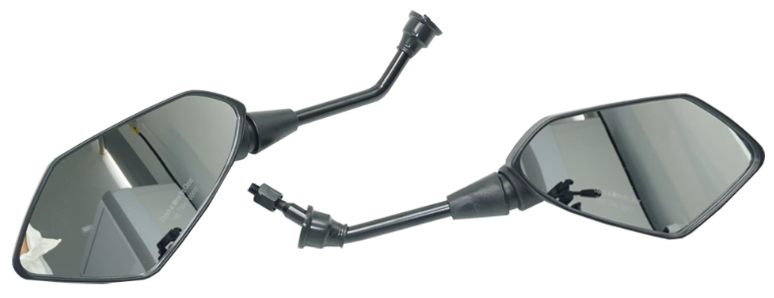

Mirrors
- OEM: SiAECOSYS, AliExpress
- Mirror bolts are both clockwise, 8mm or 10mm (unsure right now).
- If switching to bar end mirrors, look for ones that can friction fit into a 7/8" ID tube, or that can clamp onto the bar end. Proceed carefully and it's reported that a size kit (smallest size) is needed.

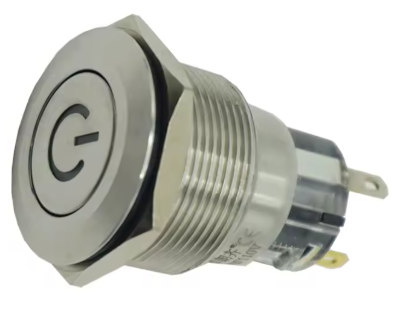

Start Button
- OEM: AliExpress

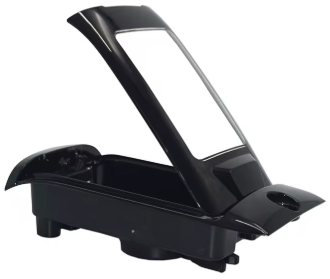

Center Console

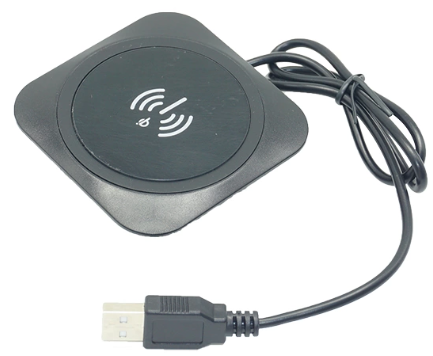

Wireless Phone Charger
- OEM: SiAECOSYS

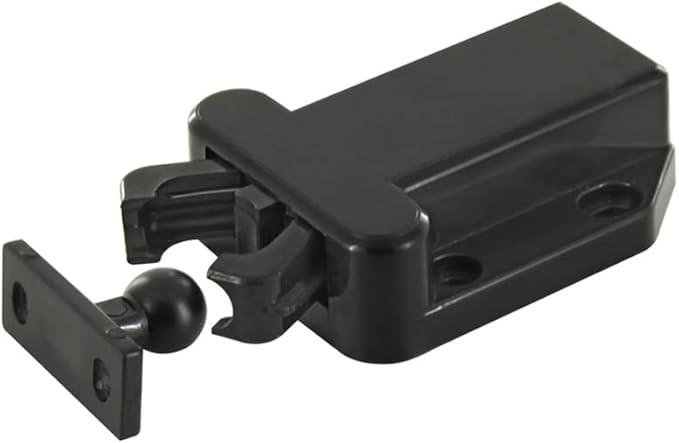

Storage Area Latch
- Possibly OEM: Amazon - Identical to what's on the Metacycle

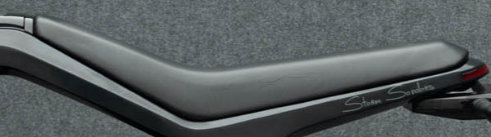

Seat
- Aftermarket: Corbin-Pacific makes aftermarket seats that are more comfortable. Installation video is pretty easy to follow.
- Aftermarket: Tapia's Seats makes custom seats that are more comfortable. Installation is extremely similar to Corbin seats.
- The seat is held in place with M6 - 1.00x25 bolts.

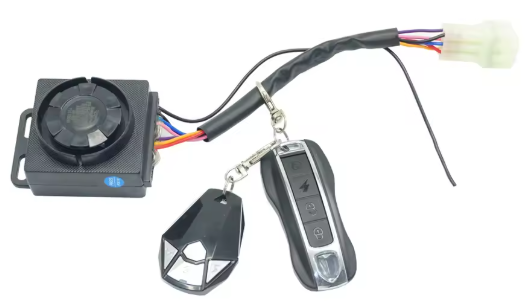

Alarm System
- OEM: AliExpress - Extremely troublesome part and source of frequent problems.
- Has a waterproof DJ7065F-2.2-11 connector on the end. Refer to the wiring guide.

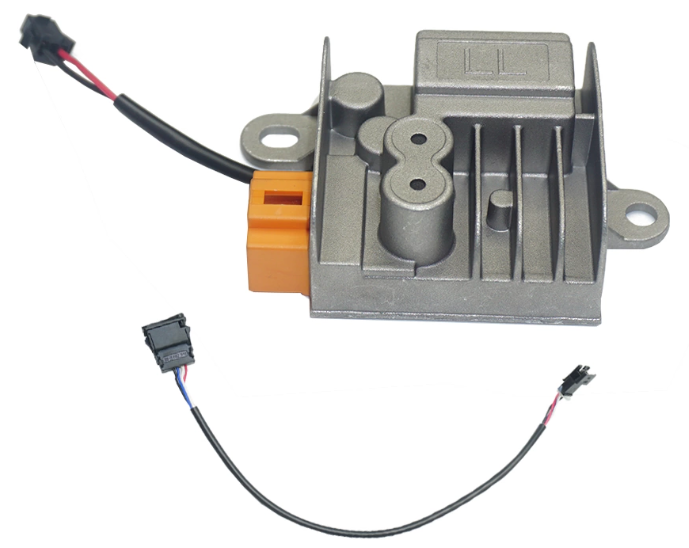

60/72 V DC to 12 V 10 A DC with 5 V 1 A Output
- OEM: SiAECOSYS

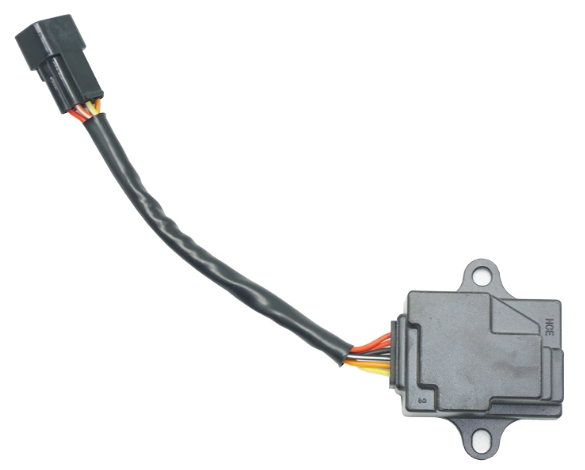

72 V DC to 12 V 3 A DC Isolated Converter
- OEM: SiAECOSYS

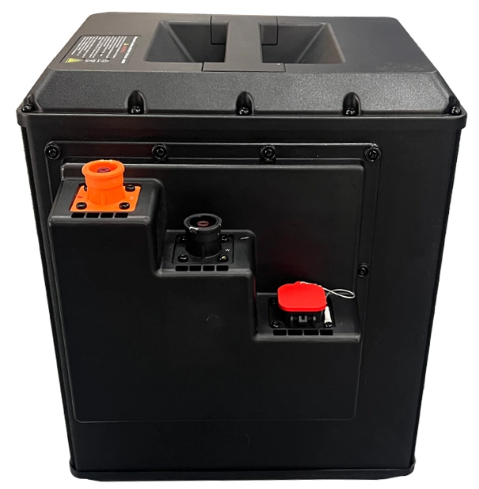

Battery - 72V 54.4Ah NCM Lithium
- OEM: SiAECOSYS - 100 A continuous, 250 A peak.
- Rebuild: E-Bike Market Place advertises that they rebuild Metacycle batteries.
- Built by Greenway. Farasis brochure. The battery's BMS uses CAN bus communication.
- If storing for extended periods of time, disconnect the battery so the alarm doesn't drain it. Also, do not charge the battery when it's cold (below freezing) to avoid damaging it.

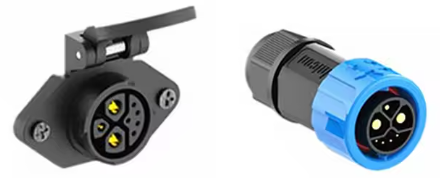

Battery Charging Port or Cable End
- OEM: AliExpress, BMS Battery, Jnicon.
- Chogori Large series 2+1+5, sometimes labeled as 3+5, sometimes 8P. Male end is believed to be Chogori 24305131-01. Cable connector to charge the battery outside the bike is 24305635-01. Panel mount on battery case appears to be 24305636-01 (Reddit). Some connectors don't have all of the pins, so be sure to buy the right ones.
- The female connector is similar to the one used on the cable that can link the charger to the battery directly, pictured on the right side of the cable shown here.
- Waterproof caps: Wagner, male end and female end.
Connector for Battery
- Part number FEFB-10009A-02, 2+9Pin Hybrid Power Connector, from Renhotec.
- This connector is part of the cable that can link the charger to the battery directly.

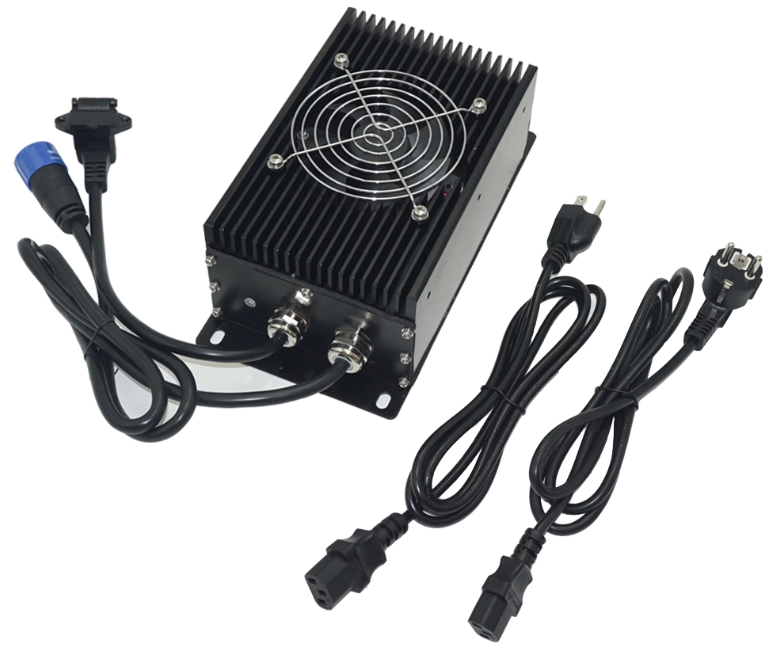

Battery Charger
- OEM: SiAECOSYS is a 120/240 VAC 1800 W → 18 A 84 VDC charger. More info about the battery charger.
- Aftermarket: SiAECOSYS makes a 20 A model that's smaller and lighter. Make sure to specify a US plug.

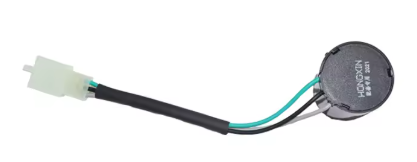

Turn Signal Relay
- OEM: AliExpress

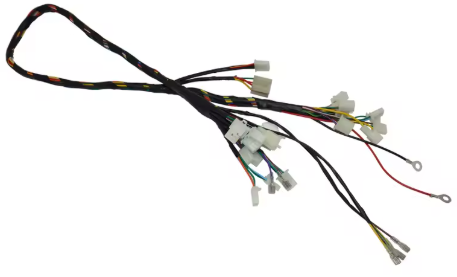

Wiring Harness
- Unsure: AliExpress (EM200/2) - this is not exactly the same but may work.

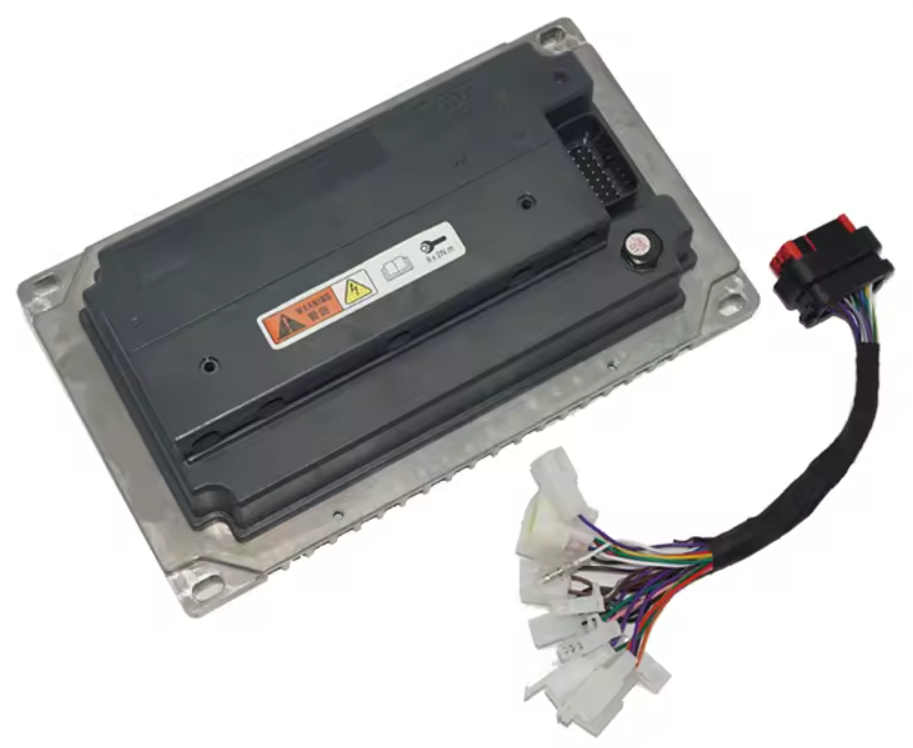

Controller - Votol EM200-2SP
- OEM: AliExpress - Votol EM200-2SM, not Votol EM200.
- Learn more about this controller.

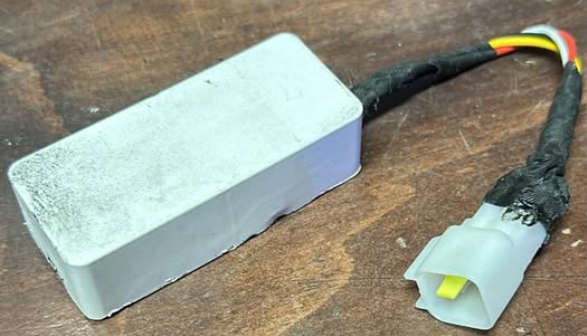

Delay Relay
- Not much is known. Post with pictures and a post asking for info.

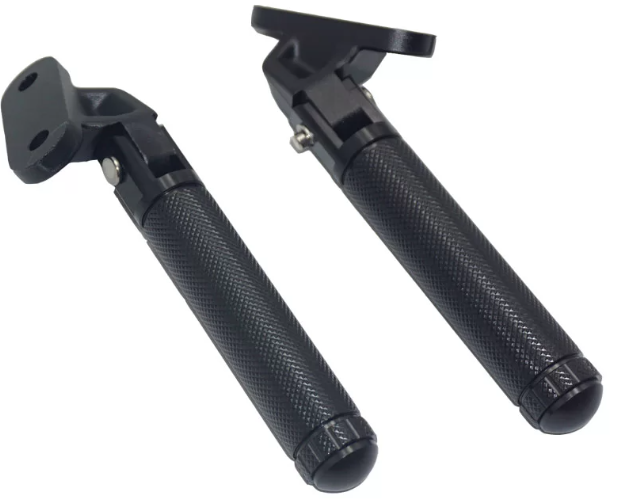

Folding Footpegs
- OEM: SiAECOSYS, AliExpress
Kickstand Switch
- OEM: AliExpress

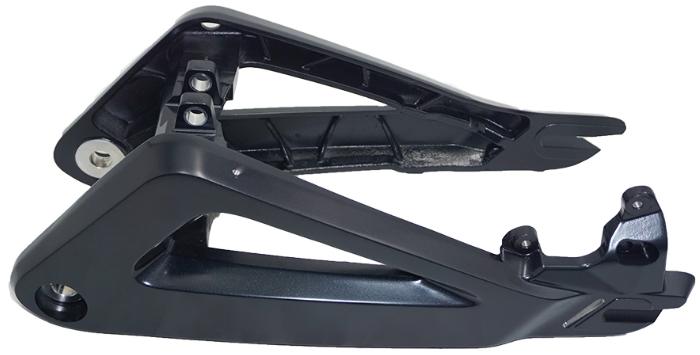

Swing Arm
- OEM: SiAECOSYS

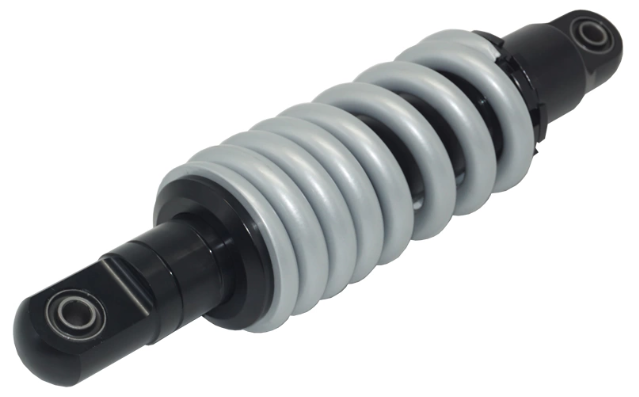

Rear Shock
- OEM: SiAECOSYS, AliExpress - Reported to be of poor quality, though one should understand that this bike was made to be inexpensive.
- Stock is 310 mm, 10 mm top and bottom holes, 25 mm end widths.
- Aftermarket: AliExpress, from this Facebook post.
- Aftermarket: Very similar to KTM RC 390, though approximately 1mm will need to be filed off the width of the bushing on the shock islet where it connects to the bike. Reddit has the discussion.
- Some riders choose 320mm or 330mm, giving the bike additional height.

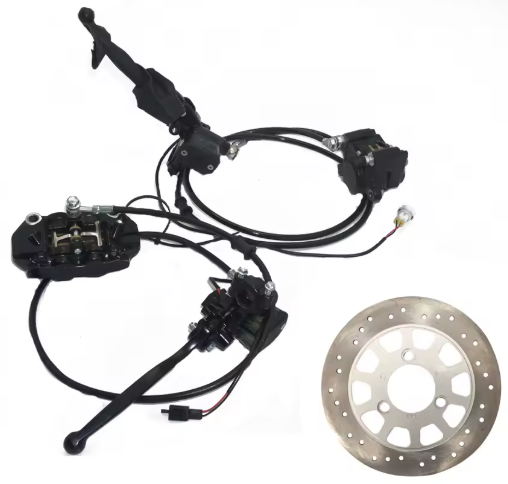

Full Brake System
- OEM: AliExpress

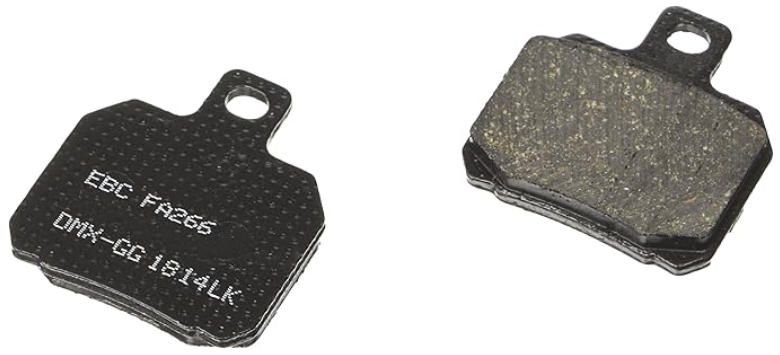

Rear Disc Brake Pads
- OEM: Amazon - EBC FA266. There are different versions with this number and the organic ones are the quietest.

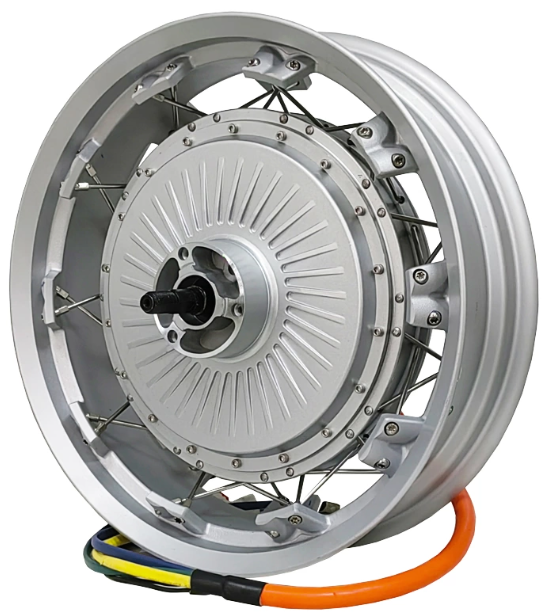

Hub Motor
- OEM: SiAECOSYS, AliExpress (hub motor and front rim)
- Learn more about this motor.

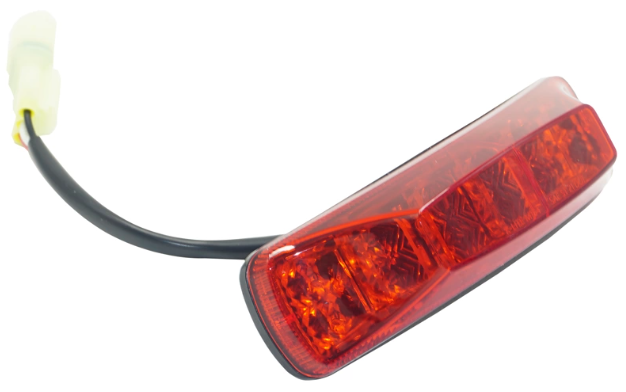

Taillight / Brake Light
- OEM: SiAECOSYS, AliExpress

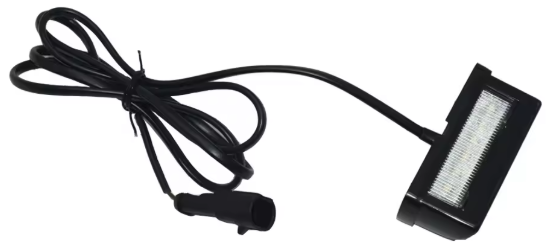

License Plate Light
- OEM: AliExpress

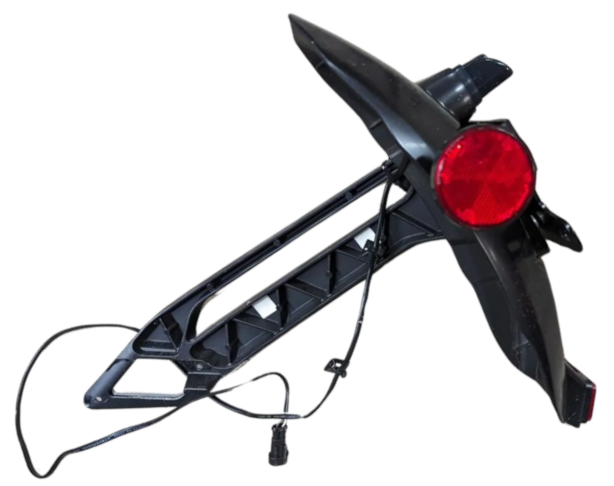

Rear Fender
- Aftermarket: If you want a lower rear fender, KTM Duke 390 fits and has been reported to work well.
